Inspection is the next step of finding hidden threats, using X-ray scanners to check carry-on bags or baggage, packages, cargo, entire containers or vehicles.
We offer a full and locally serviced range of scanning equipment, from table top to baggage, full body, and vehicle/truck or container scanners. Fjade (FDT) is a reputable manufacturer for high end quality X-ray equipment, and a direct supplier.
But that is not all, we also adapt to operators assistance with our unique bidirectional start-stop automation and screen sharing, suitable for many scanner models.
AT-4233 is the presently smallest available true x-ray scanner with a tunnel size of 420*330 mm and overall size of 1531*860*668 mm. Developed as a low power table top scanner to replace the outdated postal scanners but fully functional for bags and other small items. AT4233 is driven by LINUX and purposely simplified to core operations. The net weight is only 200 Kg, and the required power supply is 220/240 VAC <500 W. The unit is inverter friendly for mobile applications and requires a solid table structure. The minimum access width (door size) is 670 mm.
Height adjustable Table,
recommended for AT-4233
recommended for AT-4233

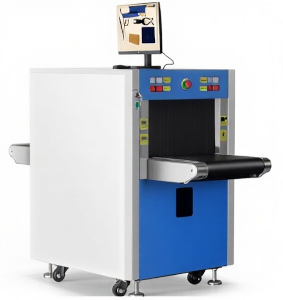

FDT-5030 is the standard size for entry level baggage scanners with a tunnel size of 505*305 mm and overall size of 1690*1224*796 mm. Model “A” refers to standard applications, model “C” offers higher steel penetration. FDT-5030 A and C are high end Windows 10 operated scanners with many options. The net weight is only 225 Kg, and the required power supply is 220/240 VAC <400 W. The minimum access width (door size) is 800 mm.

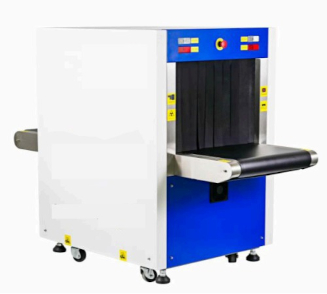

FDT-6040 is a Multi-Energy X-Ray baggage scanner with a tunnel size of 615*454 mm and overall size of 1845*865*1313 mm. The FDT-6040 is a high end Windows 10 operated scanner with many options. The net weight is only 354 Kg, and the required power supply is 220/240 VAC <500 W. The minimum access width (door size) is 870 mm.
Fjade (FDT) is a reputable manufacturer for high end quality X-ray equipment, and a direct supplier.
Multiview is our software extension for all X-ray scanners (or other monitoring equipment), and enables multiple viewers on different equipment, who must be authorized and in the same network, to view the life screen content. The main advantage is, the screener knows that someone may watch his activities in the background and pays more attention. Secondary, many eyes see more than two, and may pick up abnormalities randomly. Multiview is available to all our X-ray scanners.
This unique Roteck Conveyer Automation (RCA) starts and stops the conveyer automatically and bidirectional, and makes entry/exit tables redundant. Our solution saves not only space on site, but also wears and tears on equipment, and electricity. In combination with Multiview we have the ideal remote controlled and supervised scanning solution. RCA is available to all our X-ray scanners.
©Copyright Roteck 2025 (All Rights Reserved)
This website is proudly cookie free and can be viewed, copied and shared unconditionally
Inspection
This unique small and lightweight vertical X-ray scanner is developed for fast, full or part body scans, to detect and locate small hidden or swallowed items like drugs, gems, or precious metals. The unit is ideal for border control, mines and factories, security checks or other high security applications, and is also suitable for power independent trailer installation.
